Product Range : PBS
Part Number : 6072937
Model Number : PBS2-RB010SG1SSDLMA0Z
Pressure Range : 0 - 10 Bar / 0 - 145 psi
Analogue Output : No
PNP Output : Yes 2 x Programmable Switching
Process Connection : G 1/4 acc. to DIN 3852-E
Electrical Connection : M12 5 Pin
Protection Rating : IP65
Temperature Range : -20oC to 85oC
Seal : NBR
- No moving parts: No mechanical wear, fatigue-proof, maintenance-free
- Stainless steel membrane
- Various programmable switching functions
- Digital outputs PNP or NPN, Analog output signal 4 ... 20 mA or 0 ... 10 V
- Min/max pressure memory
- Password protection
- Selection of different pressure units for the display

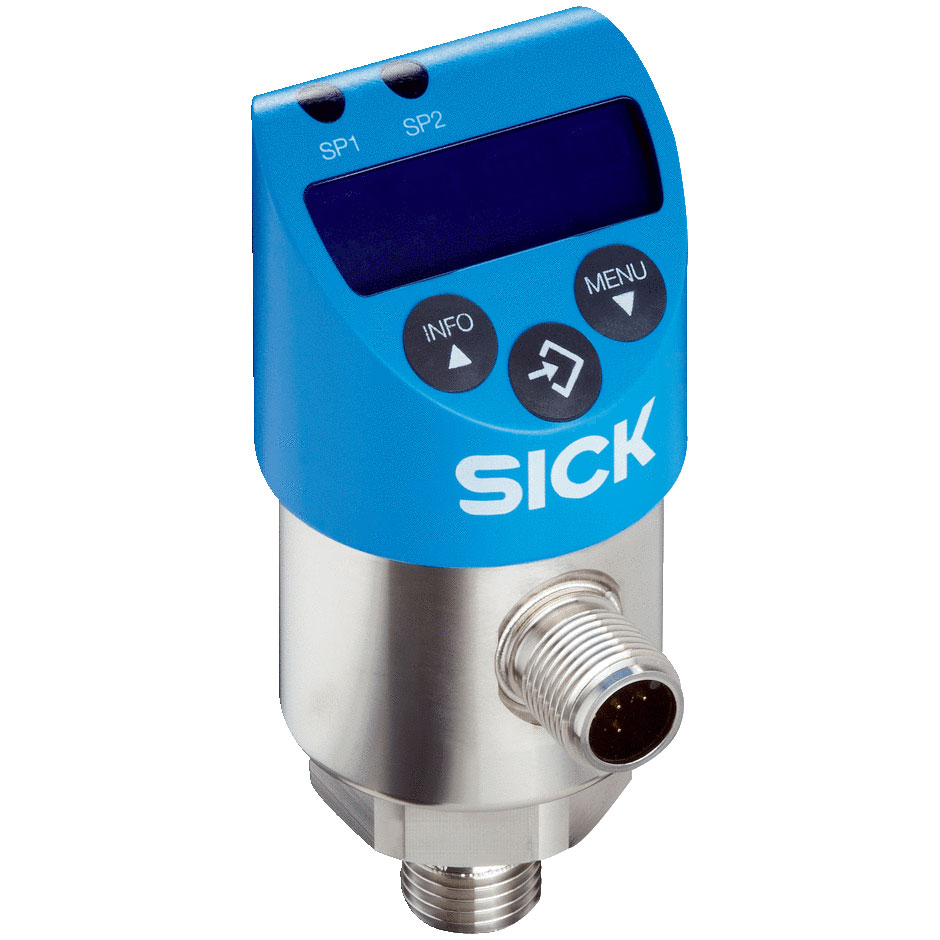

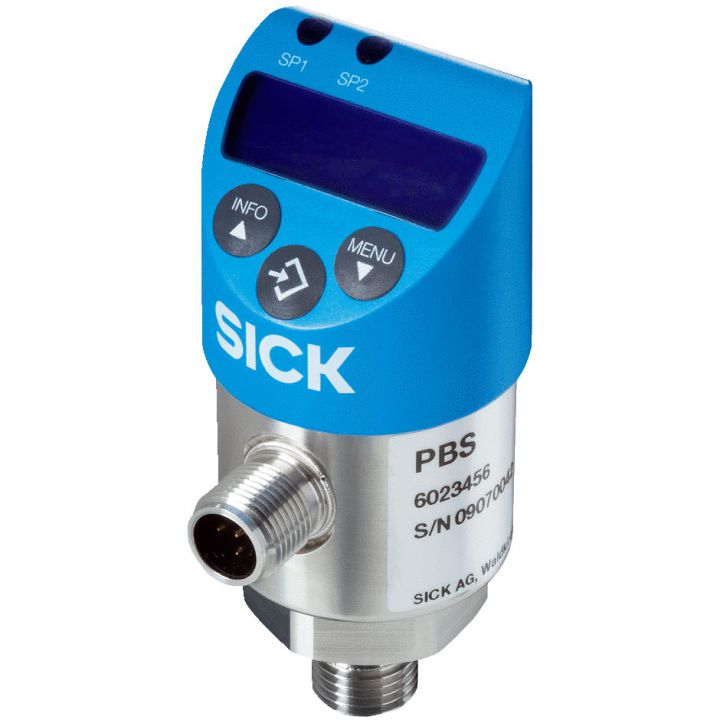

The Sick PBS range is an electronic pressure switch, transmitter and display in one device. In it's base configuration the PBS has two programmable switching points. In addition there are configurations available with an analog output signal and one or two switching outputs.
Setup is simple with three large buttons and an integrated display. The Sick PBS range of universal pressure switches are available from 0 to 600 bar, with gauge, absolute and compound measurement ranges.
