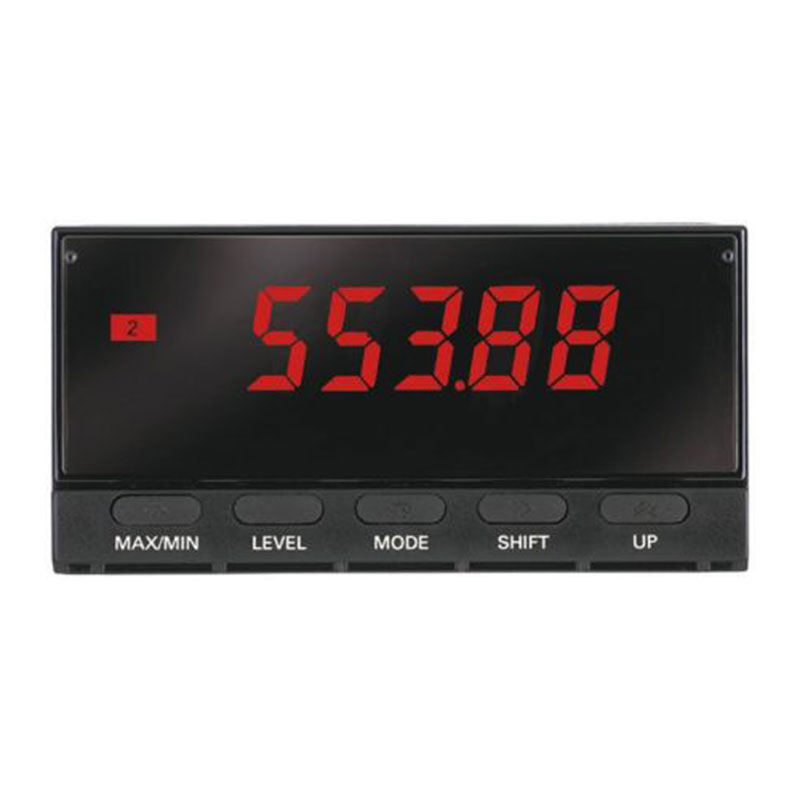

Omron K3MAJ-A2 Panel Meter : Highly visible LCD display with 2-colour (red and green) LEDs
Manufacturer : Omron
Model Number : K3MA-J-A2 AC100-240
Power Supply : 100 - 240VAC
Analogue Inputs : 0-5V, 1-5V, -5V/+5V, 0-10V, -10V/+10V, 0-20mA, 4-20mA
The K3MA-J is a process meter with a supply voltage of either 100 to 240VAC or 24VAC/VDC. Both are equipped with the same quality display and have the same short depth of 80mm.
DIN-size of H 48 x W 96mm
Highly visible, negative transmissive back-lit LCD display
14.2mm-high characters
5 digits (-19999 to 99999)
Front-panel IP66
