Recommended for applications where the motor is used with a frequency inverter.
Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.
| Part Number |
FV SIE 080 0K 155 184 |
| IP Rating |
IP66 |
| Airflow @ 50 Hz |
148 m3/hour |
| Fan Speed |
2940 rpm |
| Noise Level |
65 dB |
| Single Phase Connection |
Yes, with capacitor |
| Three Phase Connection |
Yes |
| Fan Power @ 50 Hz |
132 watts |
| Amps @ 230V Single Phase 50 Hz |
0.66 |
| Amps @ 230V Three Phase 50 Hz |
0.69 |
| Amps @ 400V Three Phase 50 Hz |
0.40 |
| To Fit Motor |
Siemens |
| Series |
1LA7 |
| Frame Size |
80 |
Please download the pdf document(s) for full technical information.

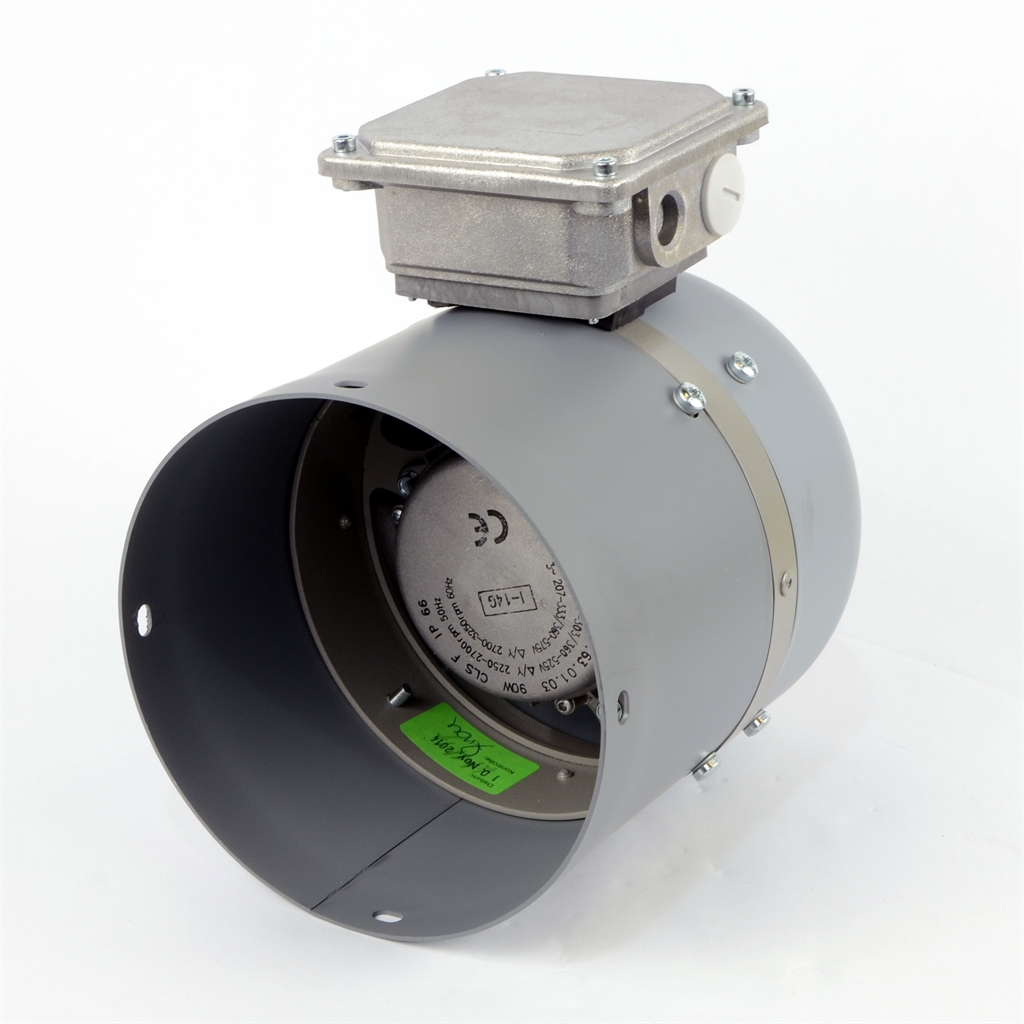

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.
